Calendar scenarios

This procedure consolidates the steps documented in this guide and in the Citizen Access Administrator Guide to set up inspection calendars for public users.

To set up inspection calendars for public users

1. Set up public users calendars in Civic Platform (See Create and edit calendars for more information).

   1. From the calendar portlet Details tab, select Enable for ACA.

   2. If you have more than one Citizen Access inspection calendar, from the calendar portlet Details tab, set the Priority field .

   3. From the calendar portlet Inspections type tab, enter Citizen Access related parameters).

2. Set up public user calendars in Citizen Access.

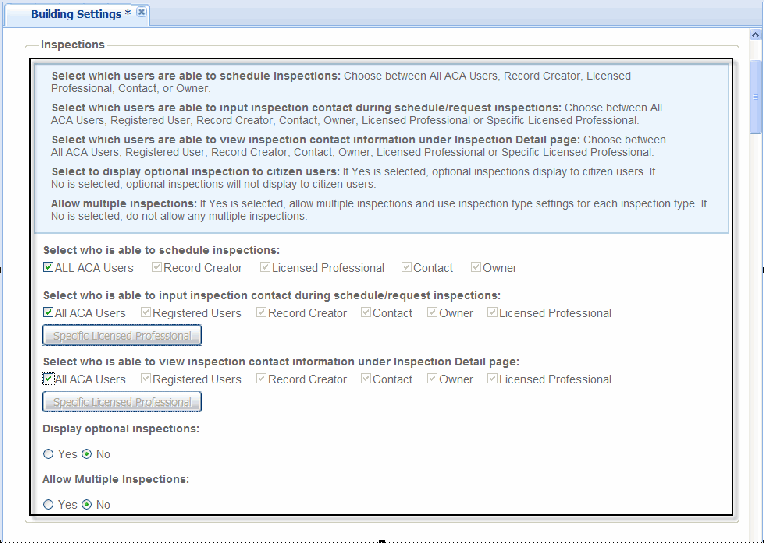

   1. From the Inspections section of the Module settings page in Citizen Access setup, set user permissions for Citizen Access calendars . See “Inspections” in the Citizen Access Administrator Guide.

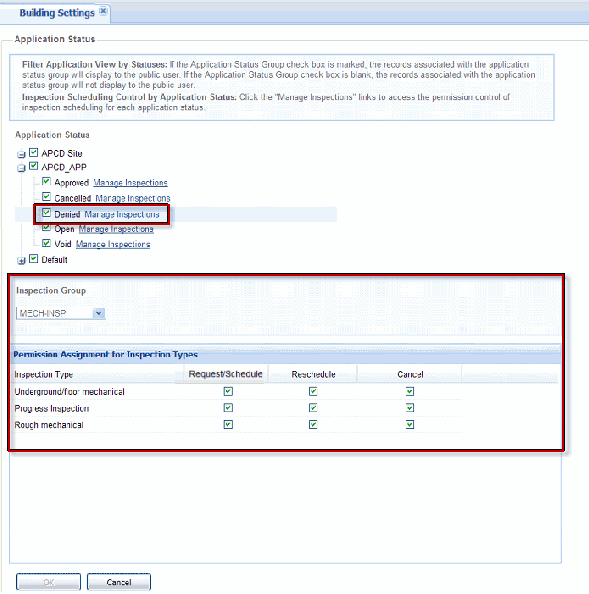

   2. From the Application Status section of Module settings page in Citizen Access Setup, restrict public users’ scheduling permissions to certain inspection types for a particular record status, if required. See also “Application Status” in the Citizen Access Administrator Guide.



If your agency only conducts inspections from 8:00 am to 12:00 pm, you can create a calendar with available inspection times from 8:00 am to 12:00 pm. Configuring your calendars this way enables you to direct users only to the calendar times available for inspection scheduling.

To create a Citizen Access Calendar with 30 minute inspection intervals

1. Create a new inspection type calendar with 30 minute time blocks (See Create and edit calendars for more information).

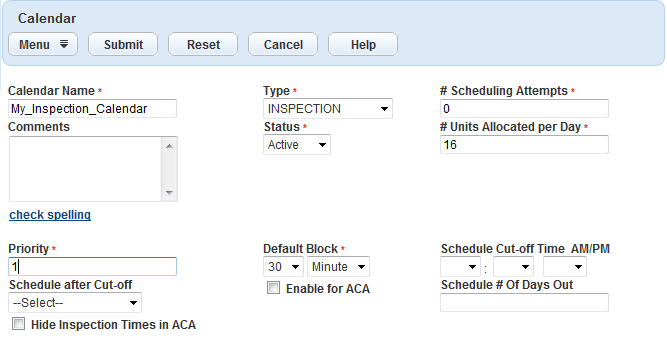

   Use the following values to configure your calendar:

   Field	Value
   # Scheduling attempts	0
   # Units allocated per day	16
   Default block	30 minutes
   Priority	1
   Status	Active
   Type	Inspection Type

2. Select the Daily tab for your newly created calendar and create a new daily calendar item that defines AM inspection times with the criteria listed below.

   Note: The inspection units correspond to the 30 minute inspection intervals established for the calendar.

   Field	Criteria
   Calendar item	AM inspection range
   End-time	12:00 PM
   Start-time	8:00 AM
   Type	Inspection

3. Create a new daily calendar item to block out a lunch hour and populate the fields with the criteria listed below:

   Field	Criteria
   Calendar Item	Lunch
   End-Time	1:00 PM
   Start-Time	12:00 PM
   Type	Block-out

4. Create a daily calendar item that defines PM inspection times with the criteria listed below.

   Field	Criteria
   Calendar Item	PM Inspection Range
   End-Time	4:00 PM
   Start-Time	1:00 PM
   Type	Inspection

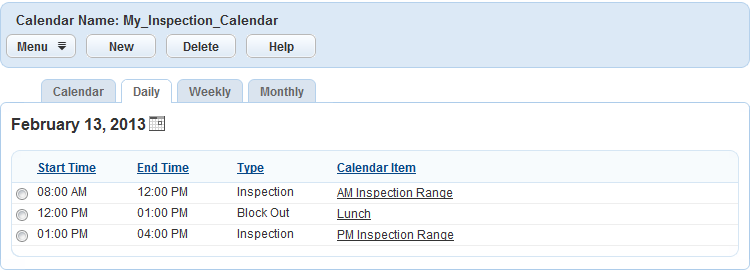

   Civic Platform displays the three calendar items in the Daily tab.



5. Log in to Citizen Access and schedule an inspection for an application.

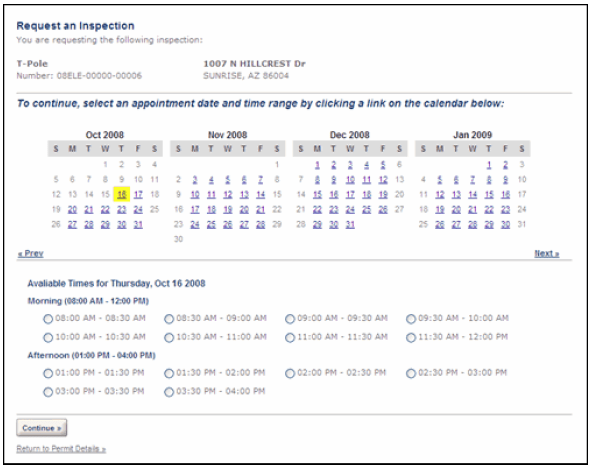

   The Citizen Access Calendar displays inspection time blocks in 30 minute intervals.



You can set up Civic Platform to automatically schedule inspections upon submitting the application. When you automatically schedule inspections, Civic Platform verifies inspector profiles against inspection types and assigns the appropriate inspector. Inspector assignments vary depending on geographic district, inspector discipline, calendar permissions, and workload availability.

When you set up inspection types and inspector profiles for automatic scheduling, Civic Platform automatically assigns the inspector whose profile best matches the inspection type you are scheduling.

To set up automatic inspection scheduling

1. Determine the inspection type you want to use for automatic inspection scheduling (See Create and edit inspection groups for more information).

2. Determine the shortest length of time it takes to complete an inspection, across all inspection types, and consider this time interval as one unit.

   For example, you might determine that the unit value equals the duration of electrical inspections, 30 minutes.

3. Determine the number of units (time segments) required to complete the inspection type of interest.

   If one unit equals 30 minutes, for example, an hour-long inspection type equals two units and a ninety-minute inspection type equals three units.

4. Set up the inspection types in Classic Administration.

   1. Access the set up form for inspection groups (Classic Administration > Admin Tools > Inspection > Inspection).

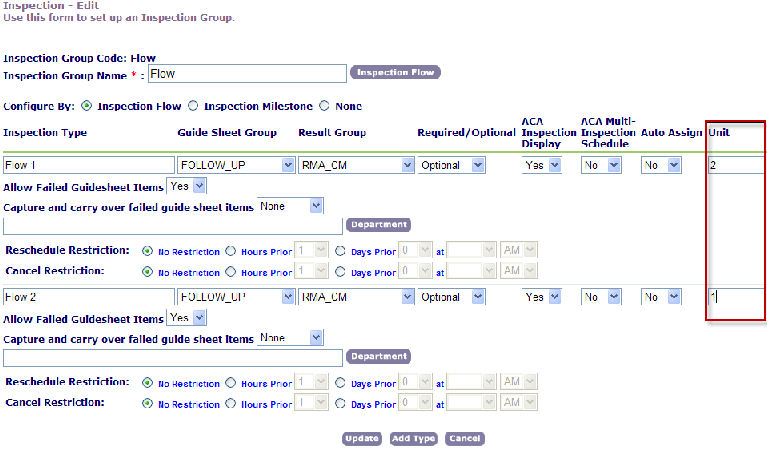

   2. Specify a unit value for all the inspection types subject to automatic scheduling.



      This table illustrates example settings for different inspection types.

      Inspection Type	Length	Unit Value (1 unit = 30 minutes)
      Electrical inspection	30 minutes	1 unit
      Plumbing inspection	1 hour	2 units
      Water Heater inspection	45 minutes	1.5 units

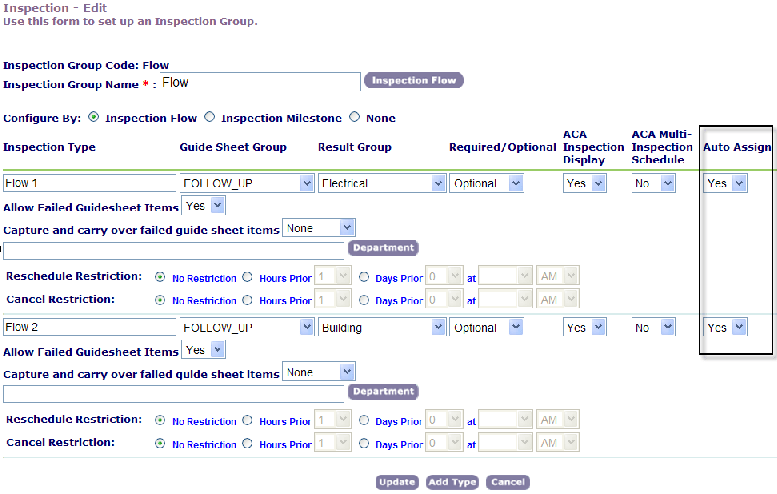

   3. Set the Auto Assign drop-down list value to Yes for each of the inspection types you want to subject to automatic scheduling.



5. For each inspector that want to automatically schedule, set up the daily capacity to do inspection work.

   1. Access the set up form for user profiles (Classic Administration > Admin Tools > User Profile > User).

   2. Select a user.

      Civic Platform displays user details.

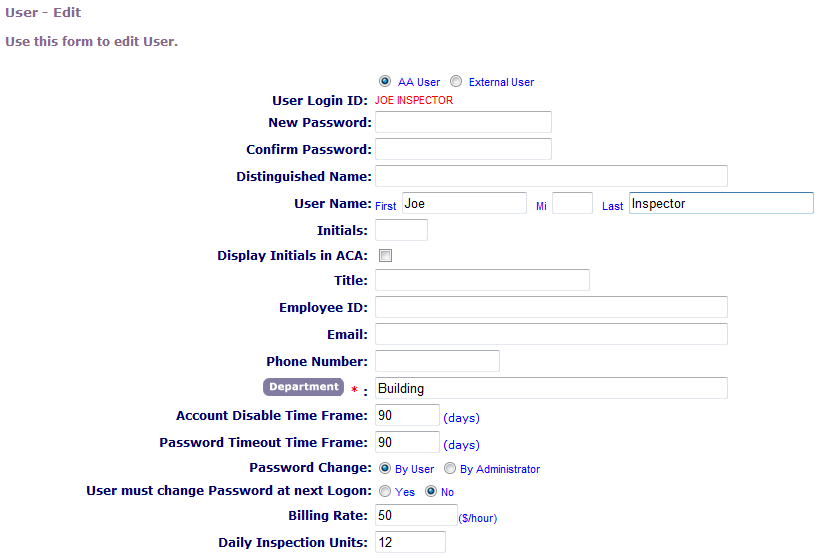

   3. In the Daily Inspection Units field, enter the number of units you expect the inspector to complete each day.

      Use the unit definition from the Inspection Unit Values as the basis for determining the number of daily inspection units.

      Example: If an inspector has six hours available for inspections each day and each unit equals 30 minutes, the inspector can accommodate twelve units per day.

6. For each inspector that you want to automatically schedule, set up their applicable districts and their disciplines.

   1. Access the set up form for user profiles (Classic Administration > Admin Tools > User Profile > User).

      Civic Platform displays the user profiles page.

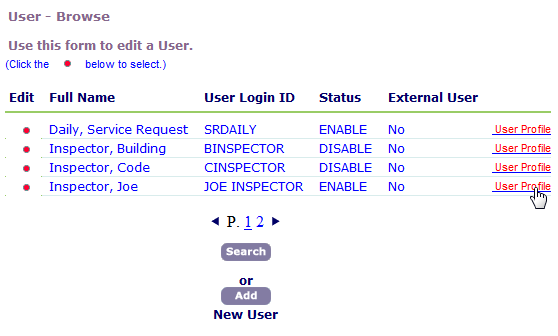

   2. From the list of users, select the User Profile link.

      Civic Platform displays the user profiles page.

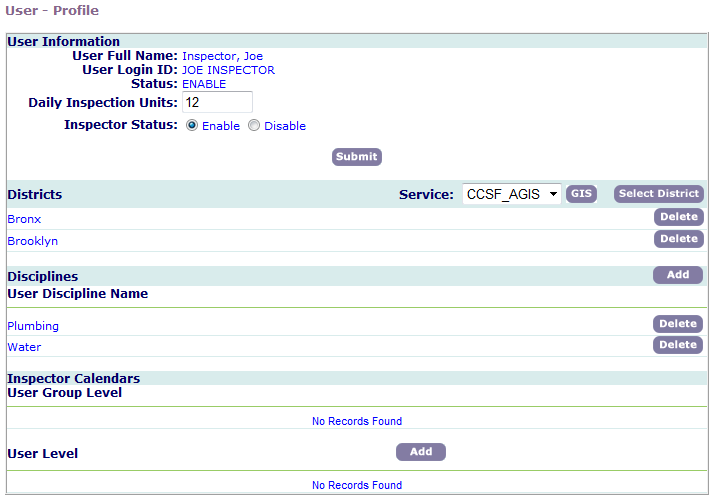

   3. Edit the user profile to include the districts and disciplines that apply to the inspector.

   This table illustrates examples of how you can configure inspector profiles.

   User Name	Group	District	Daily Inspection Units	Department	Discipline
   Allison	Inspection	Bldg North	12	Bldg	Electrical
   Matthew	Inspection	Bldg North	5	Bldg	Plumbing
   Greg	Inspection	Bldg North	15	Bldg	Water Heater

7. Set up the inspection type calendar (See Create and edit calendars for information).

   1. Set up the calendar block-out times. Block-out times are the days and times during which you cannot schedule inspections, such as holidays and weekends.

   2. Set up the number of units per day to allocate for inspections.

      Best practice is to match the time you ascribed to the inspection unit value (30 minutes for example) with the time setting in the Default Block field.



      To determine the number of units per day to allocate, add the daily inspector units of the of all inspectors assigned to a calendar. For example, if the inspectors in Inspector Profile Examples have a total of 32 inspection units per day. If you assign Matthew, an inspector with 5 daily inspection units, and Greg, an inspector with 15 daily inspection units, to the same calendar, you should set the calendar units at 20 units per day.

   3. Set up districts and inspection types (see Create and edit calendars for more information).

      Example : If you have a mechanical inspection type calendar, assign the districts that apply the calendar, as well as assigning the mechanical inspection types. When you automatically schedule inspections for inspection types associated with a calendar, Civic Platform first attempts to schedule the inspection on the associated calendar for the district in which the inspection record is registered.

   4. Assign inspector permission (see Create and edit calendars for more information).

      Civic Platform assigns inspectors to calendar events with district assignments and discipline assignments that match the districts and disciplines in the inspector’s profile.
