Event manager

An integral part of the Civic Platform is the Event Manager. The event manager:

  • Sets the global event variables

  • Sets the event specific variables

  • Executes the script associated with the event, usually an Accela developed master script.

While any script in the Civic Platform can be associated with a specific event, the Accela developed master scripts are designed to load a set of libraries of script functions and variables and then execute the custom business scripts and configurable standard scripts which match the event and the record type (where applicable).

Three global event variables are set when the event executes:

Global variable

Description

Sample code

EventName

The name of the event executing.

 aa.env.getValue("EventName");

ScriptName

The name of the script executed by the event.

 aa.env.getValue("ScriptName");

CurrentUserID

The user ID of the login executing the event.

 aa.env.getValue("CurrentUserID");

The variables set for each event are different since they reflect the data available and/or needed for the event.

Example: In the PaymentReceiveAfter event, the event manager sets the following environmental variables:

Event specific variable

Description

Sample code

CurrentUserID

The user ID of the login executing the event.

 aa.env.getValue("CurrentUserID");

FeeItemsList

The list of fee items for the record.

 aa.env.getValue("FeeItemsList");

FeeItemsOffsetList

   aa.env.getValue("FeeItemsOffsetList");

FeeItemsPaidList

The list of fee items paid with this payment.

 aa.env.getValue("FeeItemsPaidList");

FeePeriod

The fee period for assessing the fees.

 aa.env.getValue("FeePeriod");

NumberOfFeeItems

The number of fee items in the payment transaction.

 aa.env.getValue("NumberOfFeeItems");

PaymentCashierId

The user ID of the person taking the payment.

 aa.env.getValue("PaymentCashierId");

PaymentComment

Any comment made on the payment.

 aa.env.getValue("PaymentComment");

PaymentDate

The date of the payment.

 aa.env.getValue("PaymentDate");

PaymentMethod

The method of the payment.

 aa.env.getValue("PaymentMethod");

PaymentRegisterId

The identifier for the register.

 aa.env.getValue("PaymentRegisterId");

PaymentTotalAvailableAmount

The total amount available for the payment.

 aa.env.getValue("PaymentTotalAvailableAmount");

PaymentTotalPaidAmount

The total amount paid for this payment.

 aa.env.getValue("PaymentTotalPaidAmount");

PermitId1

The first internal identifier for the record.

 aa.env.getValue("PermitId1");

PermitId2

The second internal identifier for the record.

 aa.env.getValue("PermitId2");

PermitId3

The third internal identifier for the record.

 aa.env.getValue("PermitId3");

However, in the DocumentDeleteBefore event, the event specific variables are different even though the global event variables are the same:

Event specific variable

Description

Sample code

DocumentIDList

The list of document IDs to be deleted.

 aa.env.getValue("DocumentIDList");

ServProvCode

The agency service provider code.

 aa.env.getValue("ServProvCode");

The Accela Civic Platform uses a built-in JavaScript engine called “Rhino”. Rhino is an open source JavaScript engine originally started at Netscape, and early internet company, and then later released to the Mozilla Foundation.

Note: The Rhino JavaScript Engine converts JavaScript scripts into classes to dynamically execute the scripts when they are needed and, after the script isn’t needed or referenced for a while, the compiled script can be offloaded from memory in the normal garbage collecting functionality.

Scripts which are called frequently (which includes the Accela libraries of functions) are usually ‘in memory’ which means they are used enough they are rarely offloaded from memory.

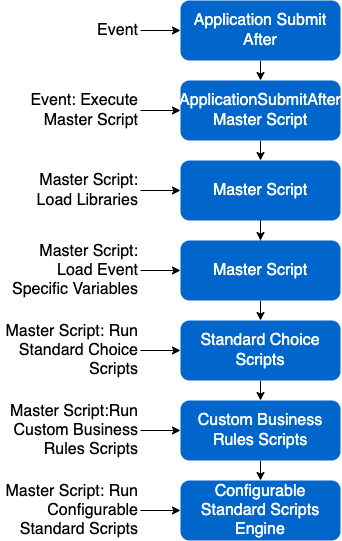

While each event master script is usually distinct from other scripts, they all follow the same basic pattern:

  1. The event manager executes the master script associated with the event

  2. The event master script loads the master script function library, the global scripts, and the INCLUDES_CUSTOM script library

  3. The event master script uses the event specific variables to set variables in scope for the event

  4. The event master script executes the standard choice scripts

  5. The event master script executes the custom business rules scripts

  6. The event master script executes the configurable standard scripts engine

Example:
